21.5inch Hologram Cylinder Real Time Holograms Life Size 3D Holographic Display Holotube

  • 1
  • 2
  • 3

Brand Name : SMX

Model Number : SH18020

Certification : CE&RoHS

Place of Origin : China

MOQ : 1pc

Price : 525usd-585usd/pc

Payment Terms : T/T, Western Union

Supply Ability : 300pcs/monthly

Delivery Time : 3-15 working days after receive payment

Packaging Details : Flight Case

Panel Size : 21.5inch

Cylindrical Cabinet Size : 330x618mm

Imaging Size : 267*476 mm

Resolution : 1920x1080

Material : Aluminum Alloy+Acrylic

Picture Format : JPEG, BMP, GIF, PNG

Video Format : MP4, MPG, AVI

Audio : Built-in speaker 5W*2

Features : Hologram 3D Effect ,Three dimensional images, Portable , High transparency ,High quality image

Brightness : 1000 cd/m²

Input Interface : USB/SD card/HDMI

Android system : Support

Contact Now

21.5inch Hologram Cylinder Real Time Holograms Life Size 3D Holographic Display Holotube

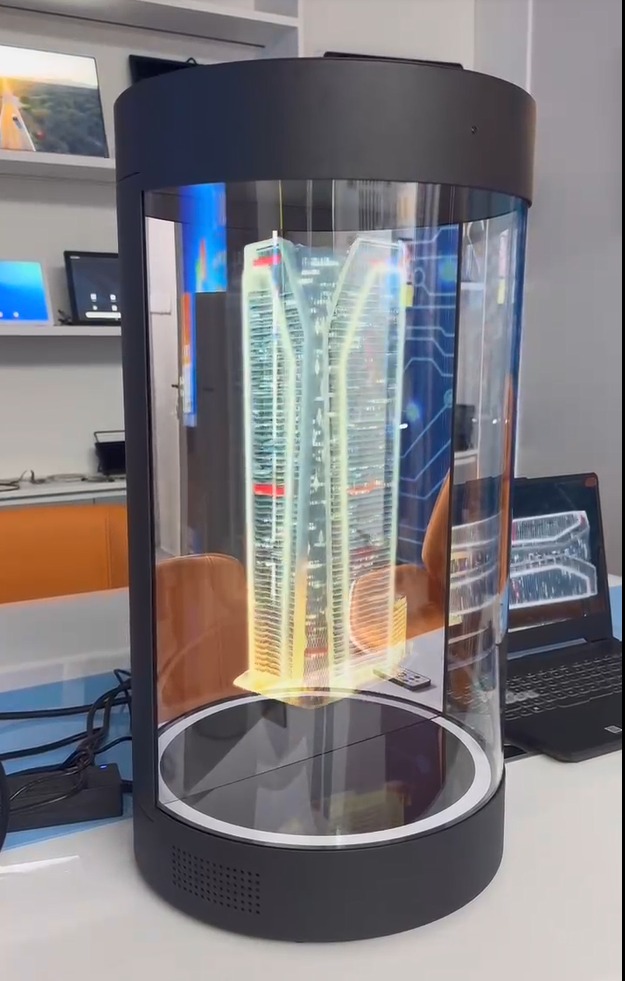

Holographic circular display is also called three-dimensional holographic image and holographic three-dimensional imaging. It is a circular cylinder made of transparent material. The audience's line of sight is mirrored and reflected through the surface, and the audience can see from the cylinder space. Free floating images and graphics. A video transmitter shines light signals onto special prisms in this cylinder, which are brought together to form a three-dimensional image with real-dimensional space. The cabinet is stylish and beautiful, with a sense of technology. Real spatial imaging has bright colors, high contrast and high definition; it has a sense of space and perspective.Diverse content The three-dimensional holographic system can replace video content at any time according to needs.

21.5inch Hologram Cylinder Real Time Holograms Life Size 3D Holographic Display Holotube

Features:


Hologram cylinder applications can include:

1.Real-time 3D and/or pre-rendered interactive content.
2.Prerecorded human presenters that react to interaction.
3.Live 3D product simulations and artifact recreations manipulated in real time.
4.Artificially intelligent simulated humans that respond directly to spoken conversation.
5.Live remote video telepresence for life-size presentations and holographic conferencing.
6.Interface: Type-C, USB/SD card , HDMI
7. Options: Android board, camera,
8.Support customization.

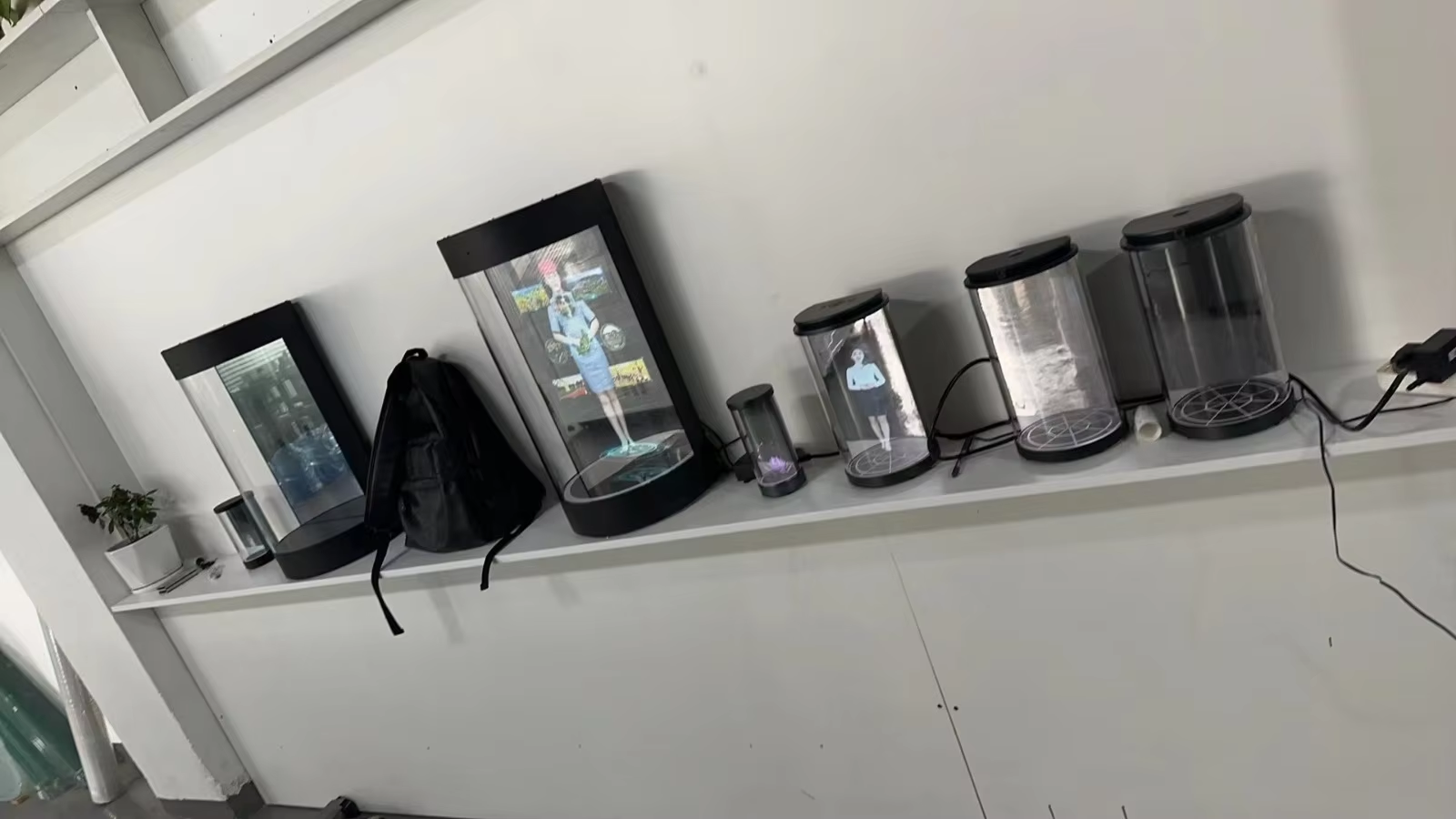

9. Size options: 5.5inch, 10.1inch , 21.5inch , 75inch
10. Optional: 5.5-inch model has an type-c cable ;and 21.5-inch models have HDMI ports.

Advantages


01 Stereoscopic Imaging

Through surface mirroring and reflection, the line of sight can see freefloating images and graphics in the cylindrical space.

02 Realistic imaging

The stereoscopic effect is cool, and the naked eye 3D achieves a realistic effect.

03 Bright Colors

The cabinet is stylish and beautiful, with a sense of technology. The real spatial imaging is bright in color, with high contrast and clarity.

04 Easy Install

Plug and play. Easy to install and construct, put it in the display position, and connect it to the power supply for use.

Specification

3D Holographic Cylinder
Model No. SH1805 SH18010 SH18020
Panel Size 5inch 10.1 inch 21.5inch
Cylindrical Cabinet Size Diameter88*H190mm 165x300mm 330x618
Imaging Size 61x109mm 135*216 mm 267*476 mm
Resolution 480x854 1920x1080 1920x1080
Brightness 400 cd/m² 500 cd/m² 1000cd/m
Panel Type LED LED LED
Response Time 8ms 8ms 8ms
Contrast 800:1 800:1 1200:1
Input Interface Type-C USB/SD card USB/SD card/HDMI
Audio Built-in speaker 2W Built-in speaker 2W*2 Built-in speaker 5W*2
Video Format MP4 MP4, MPG, AVI MP4, MPG, AVI
Picture Format JPEG, BMP, GIF, PNG JPEG, BMP, GIF, PNG JPEG, BMP, GIF, PNG
Memory 8G 16G 16G
Input Voltage DC5V-2A DC 12V DC 12V
Viewing Angle 160° 160° 160°
Color Black Black Black
Material Aluminum Alloy+Acrylic Aluminum Alloy+Acrylic Aluminum Alloy+Acrylic
Net Weight 0.5KGS 2KGS 13.5KGS
Packing Carton Carton wooden case
Packing Size 130x130x245mm 245x245x430mm 350×440X800mm
Feactures Hologram 3D Effect ,Three dimensional images, Portable , High transparency ,High quality image

We also have 75inch(with pc,camera ,sensor is optional )21.5inch Hologram Cylinder Real Time Holograms Life Size 3D Holographic Display Holotube

21.5inch Hologram Cylinder Real Time Holograms Life Size 3D Holographic Display Holotube21.5inch Hologram Cylinder Real Time Holograms Life Size 3D Holographic Display Holotube

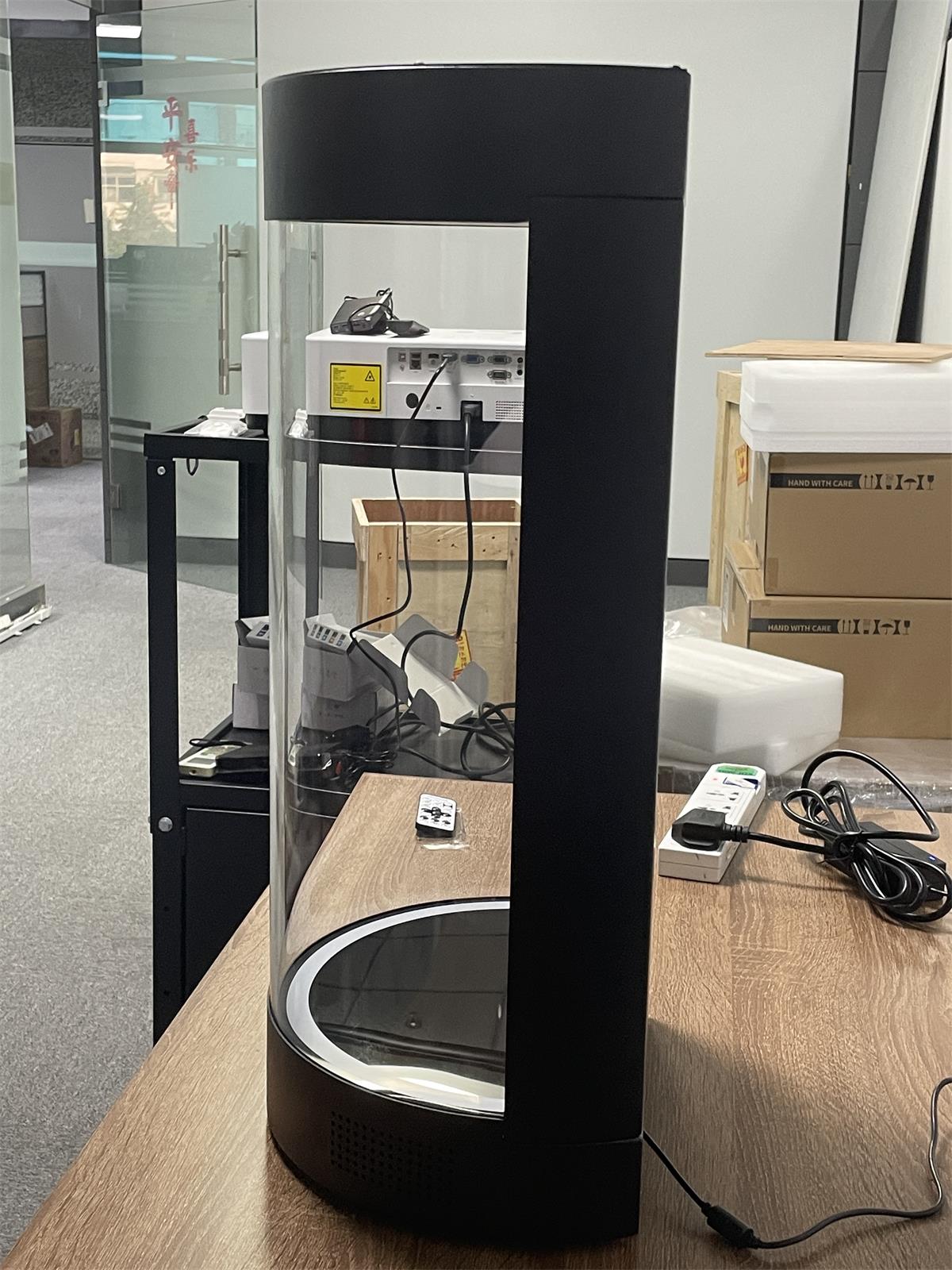

The acrylic curved surface (inside) on the back of the display is mirrored.
The image cannot be seen from the back.
Using
Application Scenarios: exhibitions, museums, medical imaging, educational simulations, shopping malls, etc.
21.5inch Hologram Cylinder Real Time Holograms Life Size 3D Holographic Display Holotube
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
